127 SERIES
BLG127 BG

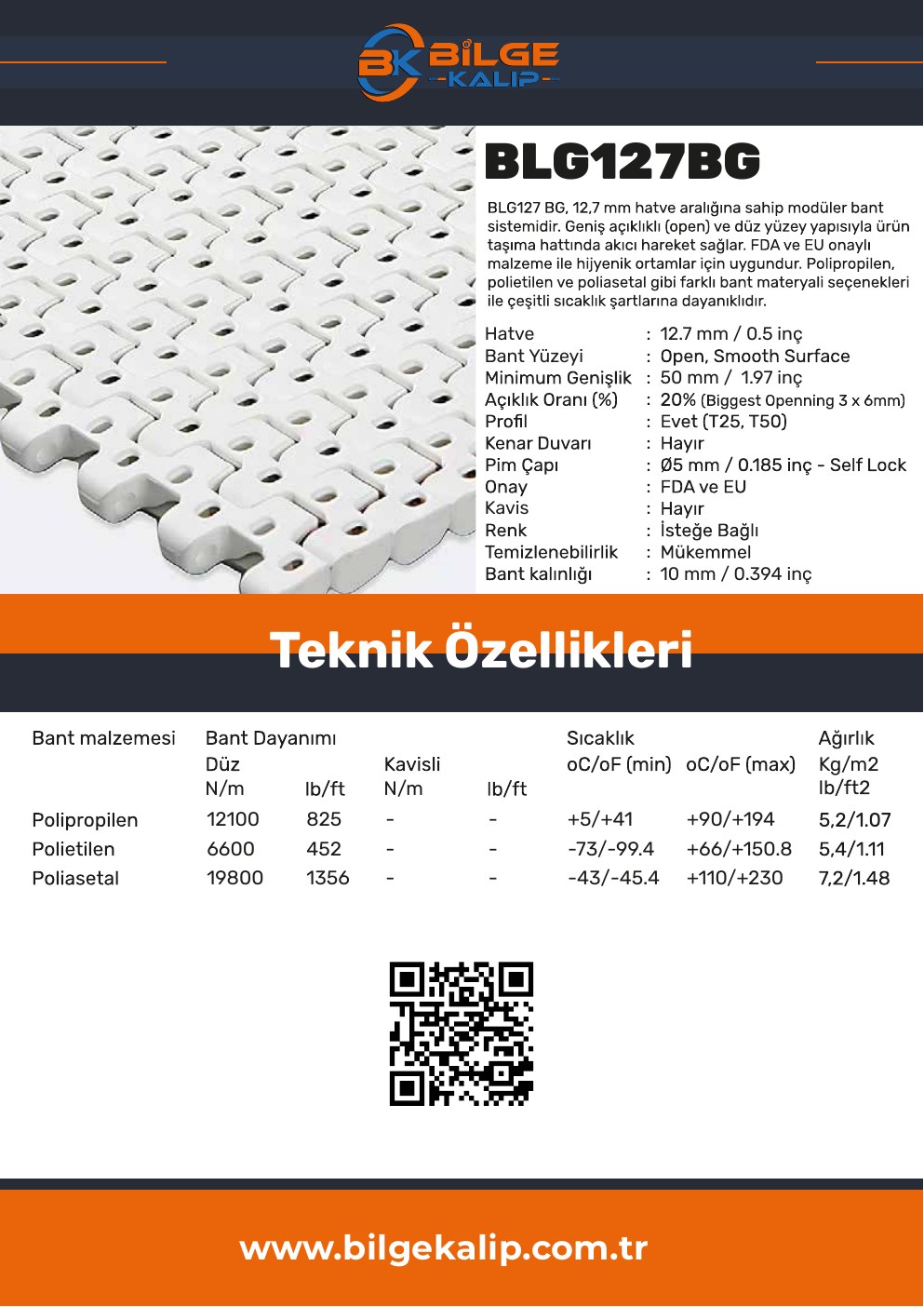

BLG127 BG is a Bilge Kalıp modular conveyor belt model in the 127 series. The listed pitch is 12.7 mm / 0.5 in. The belt surface is specified as Open, Smooth Surface. The product image and source technical data are presented together on this page.
Catalogue informationThis page is for product information only. There is no online sale or checkout.
TECHNICAL SPECIFICATIONS
BLG127 BG Technical Data
Pitch12.7 mm / 0.5 in
Belt SurfaceOpen, Smooth Surface
Minimum Width50 mm / 1.97 in
Open Area (%)20%. ( Biggest openning 3 x 6 mm)
FlightYes ( T25, T50 )
SidewallNo
Pin DiameterØ5 mm / 0.185 in - Self Lock
ApprovalFDA and EU
CurveNo
ColorOptional
CleanabilityExcellent
Belt Thickness10 mm / 0.394 in
Belt Material / Strength / Temperature
| Belt Material | Straight Strength | Curve Strength | Min. Temperature | Max. Temperature | Weight | ||
|---|---|---|---|---|---|---|---|
| N/m | lb/ft | N/m | lb/ft | °C / °F | °C / °F | Kg/m² / lb/ft² | |
| Polypropylene | 12100 | 825 | – | – | +5 / +41 | +90 / +194 | 5,2 / 1.07 |
| Polyethylene | 6600 | 452 | – | – | -73 / -99.4 | +66 / +150.8 | 5,4 / 1.11 |
| Polyacetal | 19800 | 1356 | – | – | -43 / -45.4 | +110 / +230 | 7,2 / 1.48 |
Application Evaluation for BLG127 BG
Modular belt selection should consider the conveyed product, operating environment, belt width, line speed, temperature, transfer points and cleaning requirements together with the product code.
TECHNICAL INFORMATION
Get technical information about BLG127 BG
Share your application details with the Bilge Kalıp technical team.
