381 SERIES
BLG381 WR%22

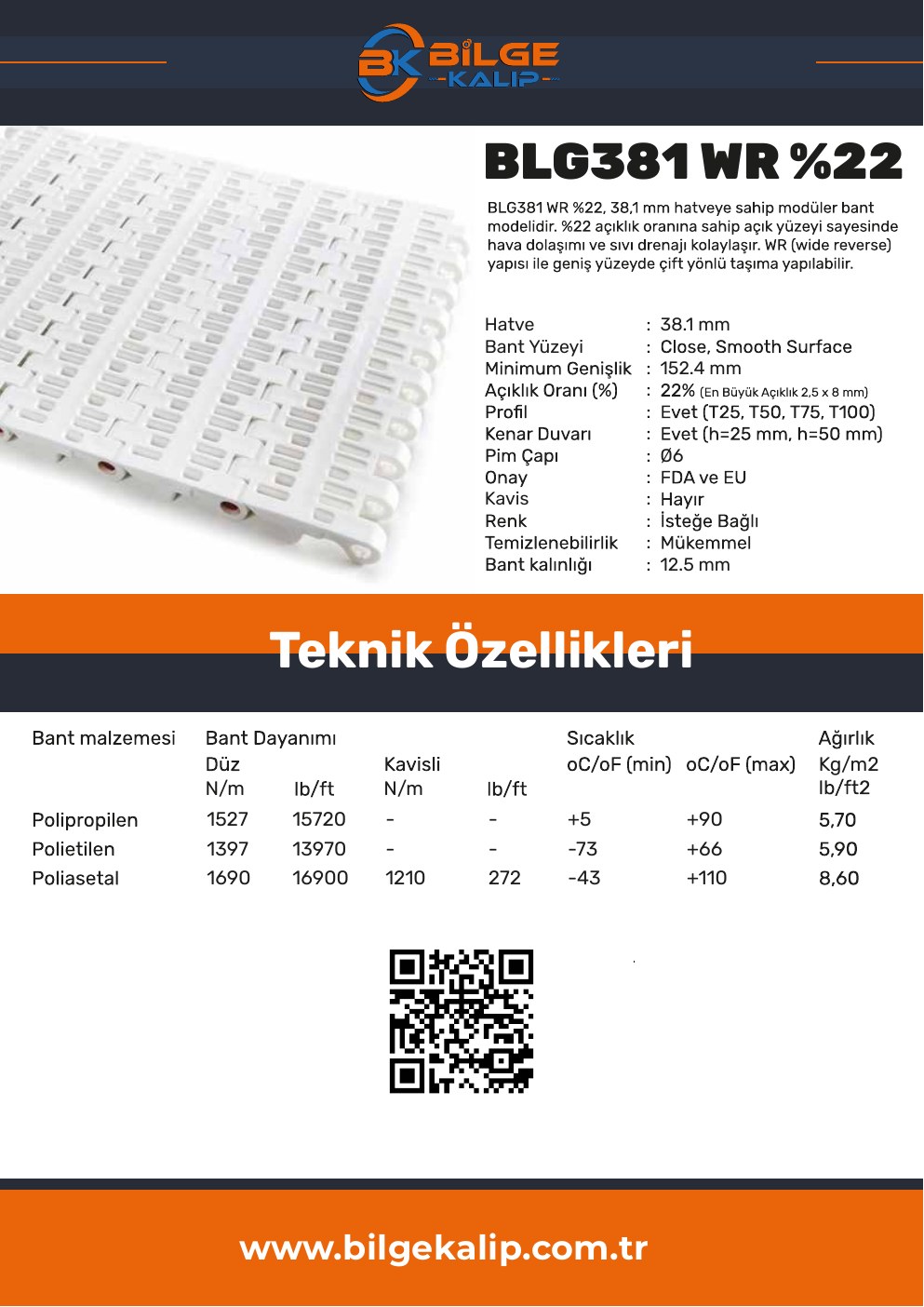

BLG381 WR%22 is a Bilge Kalıp modular conveyor belt model in the 381 series. The listed pitch is 38.1mm. The belt surface is specified as Closed, Smooth Surface. The product image and source technical data are presented together on this page.
Catalogue informationThis page is for product information only. There is no online sale or checkout.
TECHNICAL SPECIFICATIONS
BLG381 WR%22 Technical Data
Pitch38.1mm
Belt SurfaceClosed, Smooth Surface
Minimum Width152.4 mm
Open Area (%)22% (Biggest oppening 2.5x8 mm)
FlightYes (T25, T50, T75, T100)
SidewallYes ( h=25 mm, h=50 mm )
Pin DiameterØ 6 mm
ApprovalFDA and EU
CurveNo
ColorOptional
CleanabilityExcellent
Belt Width12.5 mm
Belt Material / Strength / Temperature
| Belt Material | Straight Strength | Curve Strength | Min. Temperature | Max. Temperature | Weight | ||
|---|---|---|---|---|---|---|---|
| N/m | lb/ft | N/m | lb/ft | °C / °F | °C / °F | Kg/m² / lb/ft² | |
| Polypropylene | 1527 | 15720 | +5 | +90 | 5.70 | ||
| Polyethylene | 1397 | 13970 | -73 | +66 | 5.90 | ||
| Polyacetal | 1690 | 16900 | 1210 | 272 | -43 | +110 | 8.60 |
Application Evaluation for BLG381 WR%22
Modular belt selection should consider the conveyed product, operating environment, belt width, line speed, temperature, transfer points and cleaning requirements together with the product code.
